Comprehensive specifications for 167 kVA ONAN oil-filled transformer including dimensions, weight, oil volume, and electrical data
Quick Specifications
| Rated Power: | 167 kVA | Phase: | Single-Phase |
| Primary Voltage: | 7200V | Secondary Voltage: | 120/240V |
| Cooling Class: | ONAN | BIL Rating: | 95 kV |
| Weight: | 2000 lbs (908 kg) | Oil Volume: | 80 gallons (303 L) |
| Dimensions (H×W×D): | 55″ × 39″ × 30″ (1400 × 980 × 750 mm) | ||
A 167 kVA oil-filled transformer is commonly used for Major industrial, power distribution. This guide provides complete specifications for utility engineers, electrical contractors, and procurement professionals.

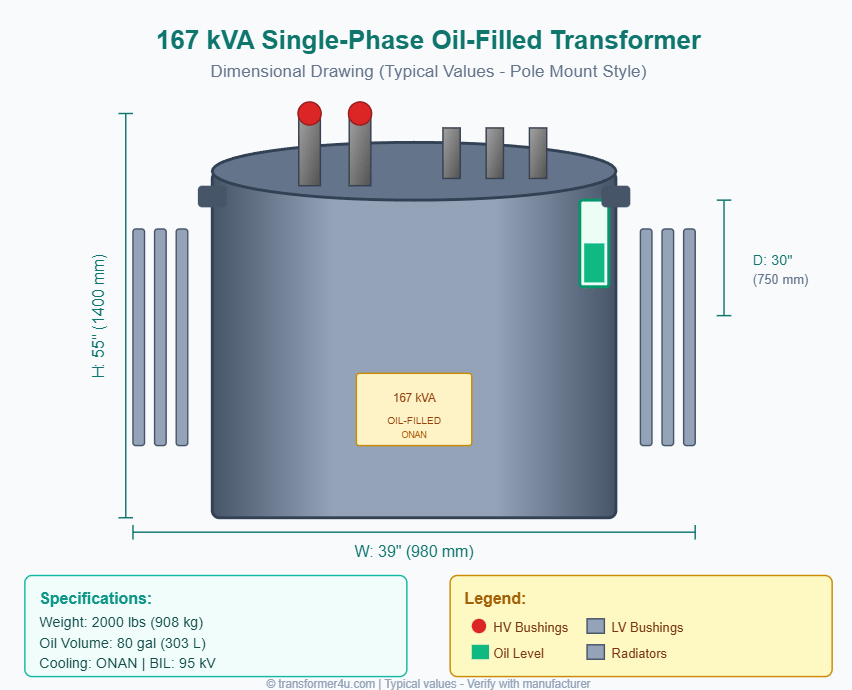

167 kVA Oil-Filled Transformer Dimensions
| Dimension | Metric (mm) | Imperial (inches) |
|---|---|---|
| Height (H) | 1400 mm | 55″ |
| Width (W) | 980 mm | 39″ |
| Depth (D) | 750 mm | 30″ |
🔧 Installation Note: This major 167 kVA oil-filled transformer requires careful planning:
- Weight: 2000 lbs – crane installation required
- Oil Volume: 80 gallons – EPA SPCC containment required (110% = 88 gallons)
- Foundation: Engineered concrete pad with 1000 lb/sq.ft minimum capacity
- Fire Code: Verify setback distances per NFPA 70 and local fire code
- Commissioning: Oil sample testing, turns ratio test, and insulation resistance test recommended before energizing
Weight and Oil Specifications
| Specification | Value | Notes |
|---|---|---|
| Total Weight (with oil) | 2000 lbs (908 kg) | Includes all oil and accessories |
| Oil Volume | 80 gallons (303 L) | Mineral Oil |
| Oil Type | Mineral Oil | IEEE C57.106 compliant |
| Containment Required | 88 gallons | 110% per EPA SPCC |
Electrical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Rated kVA | 167 kVA | At rated voltage and ONAN cooling |
| Primary Voltage | 7200V | Standard utility distribution voltage |
| Secondary Voltage | 120/240V | Service voltage |
| Cooling Class | ONAN | Oil Natural, Air Natural |
| BIL Rating | 95 kV | Standard for 12.47kV-15kV primary |
| No-Load Loss | 320 W | Core losses |
| Load Loss | 1300 W | At rated load |
| Total Losses | 1620 W | At 100% load |
| Impedance | 4.5% | Per IEEE C57.12.00 |
| Efficiency | 99.0% | At rated load |
| Sound Level | ~49 dB | Per NEMA TR-1 |
Secondary Full Load Amps
Full load amperage at secondary voltage for 167 kVA single-phase transformer:
| Secondary Voltage | Full Load Amps | Conductor Size |
|---|---|---|
| 120V | 1391.7 A | 750 MCM+ |
| 208V | 802.9 A | 750 MCM+ |
| 240V | 695.8 A | 750 MCM+ |
| 277V | 602.9 A | 750 MCM+ |
| 480V | 347.9 A | 500 MCM |
Single-Phase:
Amps = (kVA × 1000) ÷ VoltageExample at 240V:
695.8 A = (167 × 1000) ÷ 240Oil Maintenance Guidelines for 167 kVA Transformer
Proper maintenance of the 80 gallons of Mineral Oil in this transformer is critical for long-term reliability:
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Visual Oil Level Check | Monthly | Detect leaks, ensure adequate level |
| Oil Sample Analysis | Annually | Dielectric strength, dissolved gas analysis (DGA) |
| Oil Filtration/Reconditioning | Every 3-5 years | Remove moisture and contaminants |
| Silica Gel Breather Check | Quarterly | Ensure moisture protection |
| Bushing Inspection | Annually | Check for cracks, contamination, oil leaks |
⚠️ Oil Handling Safety:
- Always use proper PPE when handling transformer oil
- Dispose of contaminated oil according to EPA regulations
- Never mix different oil types without compatibility testing
- Maintain SPCC containment at all times
When to Choose a 167 kVA Oil-Filled Transformer
A 167 kVA single-phase oil-filled transformer with ONAN cooling is designed for:
- Heavy industrial loads requiring high-voltage distribution
- Utility substations serving commercial areas
- Mining and petroleum industry applications
- Remote installations with outdoor exposure
- Applications requiring superior overload capability
Advantages of Oil-Filled at 167 kVA:
- Better Cooling: Oil provides superior heat dissipation for high loads
- Overload Capacity: Can handle 150% overload for short periods
- Insulation: Oil provides excellent dielectric insulation
- Longevity: 25-40 year service life with proper maintenance
Typical Load Distribution for 167 kVA Oil-Filled Transformer
Example utility distribution loads for a 167 kVA oil-filled transformer:
| Load Type | Estimated Demand |
|---|---|
| Industrial motor loads | 66 kVA |
| Process equipment | 50 kVA |
| Lighting and HVAC | 25 kVA |
| Office/Control loads | 16 kVA |
| Miscellaneous | 8 kVA |
Note: Utility distribution varies by application. Consult with utility engineer for specific load allocations.
Related Oil-Filled Transformer Sizes
Compare with adjacent kVA ratings:
| kVA Rating | Link |
|---|---|
| 100 kVA Single-Phase | 100 kVA Oil-Filled Specs → |
| 167 kVA Single-Phase | Current Page |
| 250 kVA Single-Phase | 250 kVA Oil-Filled Specs → |
Frequently Asked Questions
How much oil does a 167 kVA oil-filled transformer contain?
A 167 kVA single-phase oil-filled transformer typically contains 80 gallons (303 liters) of Mineral Oil insulating oil.
What are the dimensions of a 167 kVA oil-filled transformer?
Typical dimensions are 55″ H × 39″ W × 30″ D (1400 × 980 × 750 mm).
How much does a 167 kVA oil-filled transformer weigh?
A 167 kVA oil-filled transformer weighs approximately 2000 lbs (908 kg) including oil.
What is the BIL rating for a 167 kVA transformer?
The standard BIL (Basic Insulation Level) rating is 95 kV, which is standard for 12.47kv-15kv primary.
Related Resources
📊 Complete Reference Charts:
- Transformer Sizing Chart – Compare all kVA ratings
- Transformer Full Load Amps Chart – FLA reference for all voltages
Related Articles
- Transformer Oil: Complete Guide to Types, Testing & Maintenance
- Three Phase Transformer: Complete Guide
- Transformer Protection: Complete Guide
Standards & References
- IEEE C57.12.00 – General Requirements for Liquid-Immersed Distribution Transformers
- IEEE C57.12.90 – Test Code for Liquid-Immersed Distribution Transformers
- IEEE C57.106 – Guide for Acceptance and Maintenance of Insulating Oil
- NEMA TR-1 – Transformers, Regulators and Reactors
- EPA 40 CFR 112 – SPCC Requirements
Disclaimer: Specifications shown are typical reference values. Actual specifications vary by manufacturer, voltage class, and application. Oil-filled transformers require proper containment, maintenance, and environmental compliance. Always consult manufacturer datasheets and local codes. Last updated: January 2026
