Complete technical guide for the 1500 kVA ONAF oil-filled distribution transformer. This page provides detailed electrical calculations, mechanical dimensions, protection sizing, and operational efficiency analysis for engineers and contractors.
⚡ Engineering Quick Reference
1804.3 A
30072 A
9000 lbs
350 gal
1. Electrical Characteristics & Performance
Detailed electrical performance data for system design and load analysis.
| Power Rating | 1500 kVA | Phase | Three-Phase 3-Wire |
| Primary Voltage | 12470Y/7200 V | Secondary Voltage | 480Y/277 V |
| Calculated Impedance | 6.0% | X/R Ratio | Typical 3.0 – 5.0 |
| No-Load Loss (Core) | 2000 W | Load Loss (Copper) | 9000 W |
| Efficiency (50% Load) | 99.3% | BIL Rating | 150 kV |
| Sound Level | 60 dB | Analogy: Air conditioning unit (Outdoor) |
2. Protection & Conductor Sizing Guide
Recommended protective device ratings based on NEC Article 450.3(A) and typical conductor sizing for 75°C Copper THHN/THWN.
| Parameter | Primary Side (12470V) | Secondary Side (480V) |
|---|---|---|
| Full Load Amps | 69.5 A | 1804.3 A |
| Rec. Overcurrent Protection | 225 A (Fuse @ ~300%) | 2500 A (Breaker @ ~125%) |
| Rec. Conductor Size | ##4 AWG (Cu) | Busbar or Multiple Runs (Cu) |

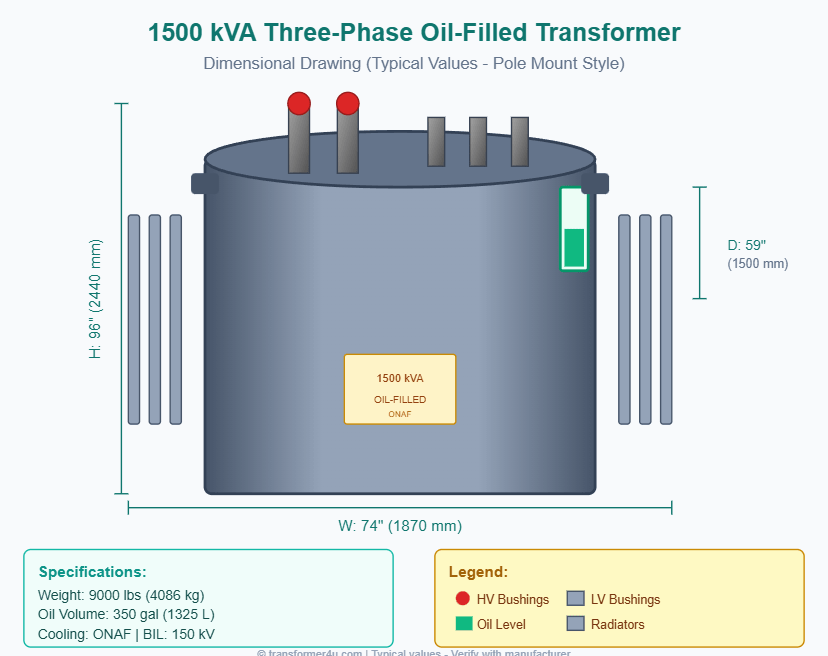

3. Dimensions, Installation & Maintenance
- Height: 96 inches (2440 mm)
- Width: 74 inches (1870 mm)
- Depth: 59 inches (1500 mm)
Hardware Configuration
- Total Weight: 9000 lbs
- HV/LV Terminals: HV: Integral Bushings (600A); LV: 8-10 hole NEMA Spade terminals or Busbar extension
- Standard Accessories: Pressure Relief Valve, Oil Level Gauge, Grounding Pads, Temperature Gauge (Thermometer), Drain Valve with Sampler, Liquid Level Gauge with Alarm Contacts, Pressure-Vacuum Gauge, Winding Temperature Indicator
🔧 Heavy Installation Guide
This major 1500 kVA oil-filled transformer requires professional rigging planning:
- Lifting: 9000 lbs dead weight – crane installation required using lifting lugs.
- Foundation: Engineered concrete pad with 4500 lb/sq.ft minimum loading capacity.
- Environmental: Permanent concrete secondary containment pit required for 350 gallons of oil.
- Commissioning: Insulation resistance (Megger), TTR (Turns Ratio), and Oil Dielectric tests mandatory before energizing.
Transformer Oil Maintenance Program
The reliability of this 1500.0 kVA unit depends heavily on the condition of its 350 gallons of Mineral Oil. Oil acts as both coolant and electrical insulation.
| Maintenance Task | Frequency | Pass Criteria / Action |
|---|---|---|
| Visual Inspection | Monthly | Check for oil leaks at gaskets, bushings, and valves. Verify oil level gauge is at 25°C mark. |
| DGA Analysis | Annually | Dissolved Gas Analysis to detect internal arcing or overheating (Acetylene, Hydrogen levels). |
| Dielectric Test | Every 2 Years | Oil must withstand >30kV (ASTM D877) breakdown voltage. Filter if below limit. |
| Moisture Content | Every 2 Years | Max 35 ppm. Moisture drastically reduces insulation strength. |
4. Operational Cost & Application
Understanding the economics and application fit is crucial for transformer selection.
💰 Estimated Annual Operating Cost: $4467.6 / Year
Based on 50% average loading at $0.12/kWh.
- 24/7 Core Losses cost: $2102.4 / yr
- Load Losses cost (at 50%): $2365.2 / yr
Application Guide: 1500 kVA Three-Phase
A 1500 kVA ONAF unit is a major infrastructure asset suitable for:
- Heavy Industry: Manufacturing plants with large motor loads (MCCs).
- Data Centers: Server rack power distribution units (PDUs).
- Institutions: Hospitals, universities, or government facilities.
- Crypto Mining: High-density mining containers (immersion cooling compatible).
Typical Load Profile Example
For a standard utilization scenario (85% Demand Factor), a 1500 kVA unit might serve:
| Load Type | Allocated Capacity |
|---|---|
| Motor Loads (Pumps/Fans) | 675 kVA |
| Process Equipment | 375 kVA |
| Lighting & Computers | 225 kVA |
| Reserve / Future Growth | 225 kVA |
Frequently Asked Questions about 1500 kVA Transformers
❓ What is the life expectancy of a 1500 kVA oil-filled transformer?
❓ How often should the oil be tested?
❓ What is the difference between ONAF and KNAN cooling?
❓ Do I need secondary containment for the oil?
Compliance & Standards
This 1500.0 kVA oil-filled transformer is designed and tested in accordance with the following major industry standards:
- IEEE C57.12.00: General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
- IEEE C57.12.34: Pad-Mounted, Compartmental-Type, Self-Cooled, Three-Phase Distribution Transformers
- IEEE C57.12.90: Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers
- NEMA TR 1: Transformers, Regulators, and Reactors
- DOE 10 CFR Part 431: Energy Efficiency Program for Certain Commercial and Industrial Equipment
- ASTM D3487: Standard Specification for Mineral Insulating Oil Used in Electrical Apparatus
Explore Related Capacities
| ← 1000 kVA Three-Phase | 1500 kVA (Current) | 2000 kVA Three-Phase → |
Key Planning Resources
Disclaimer: Data provided for preliminary engineering reference only. Short circuit calculations assume infinite bus. Protection sizing usually requires a licensed professional engineer (PE) to verify coordination.
