Comprehensive specifications for 37.5 kVA dead-front padmount transformer including dimensions, weight, concrete pad requirements, and electrical data
Quick Specifications
| Rated Power: | 37.5 kVA | Phase: | Single-Phase |
| Primary Voltage: | 12470GY/7200 | Secondary Voltage: | 120/240 |
| Enclosure: | Dead-Front | Cooling: | ONAN |
| Weight: | 750 lbs (340 kg) | Concrete Pad: | 48″ × 48″ |
| Dimensions (H×W×D): | 26″ × 34″ × 34″ (660 × 864 × 876 mm) | ||
A 37.5 kVA padmount transformer is a ground-mounted, oil-filled distribution transformer commonly used in residential areas, light commercial. This guide provides complete specifications for utility engineers, electrical contractors, and facility planners.

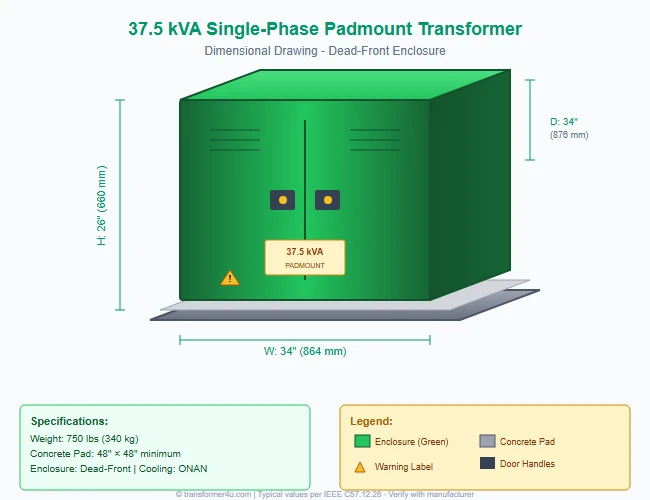

37.5 kVA Padmount Transformer Dimensions
| Dimension | Metric (mm) | Imperial (inches) |
|---|---|---|
| Height (H) | 660 mm | 26″ |
| Width (W) | 864 mm | 34″ |
| Depth (D) | 876 mm | 34″ |
Concrete Pad Requirements
The 37.5 kVA padmount transformer requires a properly designed concrete pad for installation:
| Pad Specification | Requirement | Notes |
|---|---|---|
| Minimum Pad Size | 48″ × 48″ | Allow 6″ overhang on all sides |
| Pad Thickness | 4-6 inches | Reinforced concrete, 3000 PSI minimum |
| Grade/Slope | Level ± 1/4″/ft | Slight slope away from buildings |
| Conduit Entry | Per utility specs | Primary and secondary duct banks |
| Curing Time | 28 days minimum | Before transformer placement |
Weight and Oil Specifications
| Specification | Value | Notes |
|---|---|---|
| Total Weight (with oil) | 750 lbs (340 kg) | Includes all oil and accessories |
| Oil Volume | 37 gallons (140 L) | Mineral insulating oil |
| Cooling Class | ONAN | Oil Natural, Air Natural |
| BIL Rating | 95 kV | Basic Insulation Level |
Electrical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Rated kVA | 37.5 kVA | At rated voltage and ONAN cooling |
| Primary Voltage | 12470GY/7200 | With taps ±2.5%, ±5% |
| Secondary Voltage | 120/240 | Standard service voltage |
| No-Load Loss | 85 W | Core losses |
| Load Loss | 380 W | At rated load |
| Total Losses | 465 W | At 100% load |
| Impedance | 1.9% | Per IEEE C57.12.00 |
| Efficiency | 98.8% | DOE 2016 compliant |
Secondary Full Load Amps
Full load amperage at secondary voltage for 37.5 kVA single-phase padmount transformer:
| Secondary Voltage | Full Load Amps | Conductor Size |
|---|---|---|
| 120V | 312.5 A | 350 MCM |
| 208V | 180.3 A | 3/0 AWG |
| 240V | 156.2 A | 2/0 AWG |
| 277V | 135.4 A | 1/0 AWG |
| 480V | 78.1 A | #3 AWG |
Single-Phase:
Amps = (kVA × 1000) ÷ VoltageExample at 240V:
156.2 A = (37.5 × 1000) ÷ 240When to Choose a 37.5 kVA Padmount Transformer
The 37.5 kVA single-phase padmount transformer is ideal for residential subdivisions (serving 10-20 homes) and small commercial buildings under 5,000 sq ft.
Typical Load Distribution for 37.5 kVA Padmount Transformer
| Load Type | Estimated Demand |
|---|---|
| Residential homes (3-8 homes) | 18 kVA |
| Street lighting | 3 kVA |
| Small retail | 11 kVA |
Note: Load estimates are typical values. Consult project load study for specific applications.
Related Padmount Transformer Sizes
Compare with adjacent kVA ratings:
| kVA Rating | Link |
|---|---|
| 25.0 kVA Single-Phase | 25.0 kVA Padmount Specs → |
| 37.5 kVA Single-Phase | Current Page |
| 50.0 kVA Single-Phase | 50.0 kVA Padmount Specs → |
Frequently Asked Questions
What size concrete pad do I need for a 37.5 kVA padmount transformer?
A 37.5 kVA padmount transformer requires a minimum pad size of 48″ × 48″ with 4-6 inches thickness of reinforced concrete.
How much does a 37.5 kVA padmount transformer weigh?
A 37.5 kVA padmount transformer weighs approximately 750 lbs (340 kg) including oil.
What is the difference between dead-front and live-front padmount transformers?
Dead-front designs (like this 37.5 kVA unit) have all connections inside the locked cabinet with no exposed live parts. Live-front designs have bushings exposed on top, requiring additional safety barriers in public areas.
