Comprehensive specifications for 75.0 kVA dead-front padmount transformer including dimensions, weight, concrete pad requirements, and electrical data
Quick Specifications
| Rated Power: | 75.0 kVA | Phase: | Single-Phase |
| Primary Voltage: | 12470GY/7200 | Secondary Voltage: | 120/240 |
| Enclosure: | Dead-Front | Cooling: | ONAN |
| Weight: | 1100 lbs (499 kg) | Concrete Pad: | 56″ × 56″ |
| Dimensions (H×W×D): | 30″ × 38″ × 39″ (762 × 965 × 978 mm) | ||
A 75.0 kVA padmount transformer is a ground-mounted, oil-filled distribution transformer commonly used in commercial buildings, schools. This guide provides complete specifications for utility engineers, electrical contractors, and facility planners.

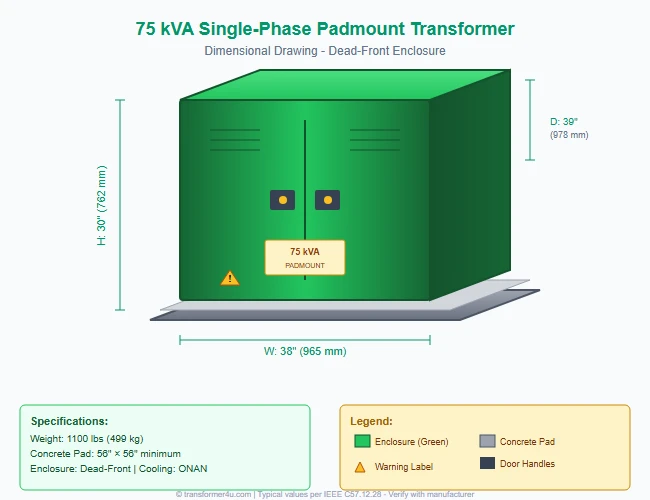

75.0 kVA Padmount Transformer Dimensions
| Dimension | Metric (mm) | Imperial (inches) |
|---|---|---|
| Height (H) | 762 mm | 30″ |
| Width (W) | 965 mm | 38″ |
| Depth (D) | 978 mm | 39″ |
Concrete Pad Requirements
The 75.0 kVA padmount transformer requires a properly designed concrete pad for installation:
| Pad Specification | Requirement | Notes |
|---|---|---|
| Minimum Pad Size | 56″ × 56″ | Allow 6″ overhang on all sides |
| Pad Thickness | 4-6 inches | Reinforced concrete, 3000 PSI minimum |
| Grade/Slope | Level ± 1/4″/ft | Slight slope away from buildings |
| Conduit Entry | Per utility specs | Primary and secondary duct banks |
| Curing Time | 28 days minimum | Before transformer placement |
Weight and Oil Specifications
| Specification | Value | Notes |
|---|---|---|
| Total Weight (with oil) | 1100 lbs (499 kg) | Includes all oil and accessories |
| Oil Volume | 56 gallons (212 L) | Mineral insulating oil |
| Cooling Class | ONAN | Oil Natural, Air Natural |
| BIL Rating | 95 kV | Basic Insulation Level |
Electrical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Rated kVA | 75.0 kVA | At rated voltage and ONAN cooling |
| Primary Voltage | 12470GY/7200 | With taps ±2.5%, ±5% |
| Secondary Voltage | 120/240 | Standard service voltage |
| No-Load Loss | 140 W | Core losses |
| Load Loss | 650 W | At rated load |
| Total Losses | 790 W | At 100% load |
| Impedance | 2.2% | Per IEEE C57.12.00 |
| Efficiency | 98.9% | DOE 2016 compliant |
Secondary Full Load Amps
Full load amperage at secondary voltage for 75.0 kVA single-phase padmount transformer:
| Secondary Voltage | Full Load Amps | Conductor Size |
|---|---|---|
| 120V | 625.0 A | 750+ MCM |
| 208V | 360.6 A | 500 MCM |
| 240V | 312.5 A | 350 MCM |
| 277V | 270.8 A | 250 MCM |
| 480V | 156.2 A | 2/0 AWG |
Single-Phase:
Amps = (kVA × 1000) ÷ VoltageExample at 240V:
312.5 A = (75.0 × 1000) ÷ 240When to Choose a 75.0 kVA Padmount Transformer
A 75.0 kVA single-phase padmount transformer is commonly specified for medium commercial facilities, multi-family housing complexes, and retail centers.
Typical Load Distribution for 75.0 kVA Padmount Transformer
| Load Type | Estimated Demand |
|---|---|
| Residential cluster (8-15 homes) | 45 kVA |
| Small commercial | 18 kVA |
| Outdoor lighting | 7 kVA |
Note: Load estimates are typical values. Consult project load study for specific applications.
Related Padmount Transformer Sizes
Compare with adjacent kVA ratings:
| kVA Rating | Link |
|---|---|
| 50.0 kVA Single-Phase | 50.0 kVA Padmount Specs → |
| 75.0 kVA Single-Phase | Current Page |
| 100.0 kVA Single-Phase | 100.0 kVA Padmount Specs → |
Frequently Asked Questions
What size concrete pad do I need for a 75.0 kVA padmount transformer?
A 75.0 kVA padmount transformer requires a minimum pad size of 56″ × 56″ with 4-6 inches thickness of reinforced concrete.
How much does a 75.0 kVA padmount transformer weigh?
A 75.0 kVA padmount transformer weighs approximately 1100 lbs (499 kg) including oil.
What is the difference between dead-front and live-front padmount transformers?
Dead-front designs (like this 75.0 kVA unit) have all connections inside the locked cabinet with no exposed live parts. Live-front designs have bushings exposed on top, requiring additional safety barriers in public areas.
