Complete technical guide for the 750 kVA ONAN oil-filled distribution transformer. This page provides detailed electrical calculations, mechanical dimensions, protection sizing, and operational efficiency analysis for engineers and contractors.
⚡ Engineering Quick Reference
902.1 A
15689 A
5000 lbs
200 gal
1. Electrical Characteristics & Performance
Detailed electrical performance data for system design and load analysis.
| Power Rating | 750 kVA | Phase | Three-Phase 3-Wire |
| Primary Voltage | 12470Y/7200 V | Secondary Voltage | 480Y/277 V |
| Calculated Impedance | 5.75% | X/R Ratio | Typical 3.0 – 5.0 |
| No-Load Loss (Core) | 1200 W | Load Loss (Copper) | 5000 W |
| Efficiency (50% Load) | 99.2% | BIL Rating | 125 kV |
| Sound Level | 52 dB | Analogy: Normal conversation background |
2. Protection & Conductor Sizing Guide
Recommended protective device ratings based on NEC Article 450.3(A) and typical conductor sizing for 75°C Copper THHN/THWN.
| Parameter | Primary Side (12470V) | Secondary Side (480V) |
|---|---|---|
| Full Load Amps | 34.7 A | 902.1 A |
| Rec. Overcurrent Protection | 110 A (Fuse @ ~300%) | 1200 A (Breaker @ ~125%) |
| Rec. Conductor Size | ##8 AWG (Cu) | 3 x 350 MCM (Cu) |

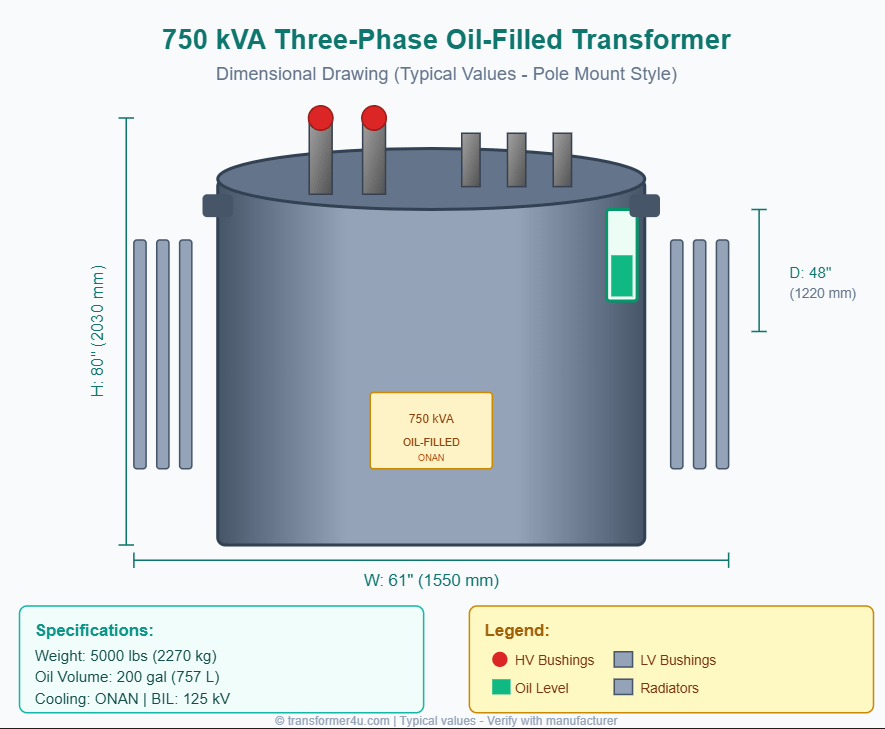

3. Dimensions, Installation & Maintenance
- Height: 80 inches (2030 mm)
- Width: 61 inches (1550 mm)
- Depth: 48 inches (1220 mm)
Hardware Configuration
- Total Weight: 5000 lbs
- HV/LV Terminals: HV: Integral Bushings (600A); LV: 8-10 hole NEMA Spade terminals or Busbar extension
- Standard Accessories: Pressure Relief Valve, Oil Level Gauge, Grounding Pads, Temperature Gauge (Thermometer), Drain Valve with Sampler, Liquid Level Gauge with Alarm Contacts, Pressure-Vacuum Gauge, Winding Temperature Indicator
🔧 Heavy Installation Guide
This major 750 kVA oil-filled transformer requires professional rigging planning:
- Lifting: 5000 lbs dead weight – crane installation required using lifting lugs.
- Foundation: Engineered concrete pad with 2500 lb/sq.ft minimum loading capacity.
- Environmental: Permanent concrete secondary containment pit required for 200 gallons of oil.
- Commissioning: Insulation resistance (Megger), TTR (Turns Ratio), and Oil Dielectric tests mandatory before energizing.
Transformer Oil Maintenance Program
The reliability of this 750.0 kVA unit depends heavily on the condition of its 200 gallons of Mineral Oil. Oil acts as both coolant and electrical insulation.
| Maintenance Task | Frequency | Pass Criteria / Action |
|---|---|---|
| Visual Inspection | Monthly | Check for oil leaks at gaskets, bushings, and valves. Verify oil level gauge is at 25°C mark. |
| DGA Analysis | Annually | Dissolved Gas Analysis to detect internal arcing or overheating (Acetylene, Hydrogen levels). |
| Dielectric Test | Every 2 Years | Oil must withstand >30kV (ASTM D877) breakdown voltage. Filter if below limit. |
| Moisture Content | Every 2 Years | Max 35 ppm. Moisture drastically reduces insulation strength. |
4. Operational Cost & Application
Understanding the economics and application fit is crucial for transformer selection.
💰 Estimated Annual Operating Cost: $2575.44 / Year
Based on 50% average loading at $0.12/kWh.
- 24/7 Core Losses cost: $1261.44 / yr
- Load Losses cost (at 50%): $1314.0 / yr
Application Guide: 750 kVA Three-Phase
A 750 kVA ONAN unit is a major infrastructure asset suitable for:
- Heavy Industry: Manufacturing plants with large motor loads (MCCs).
- Data Centers: Server rack power distribution units (PDUs).
- Institutions: Hospitals, universities, or government facilities.
- Crypto Mining: High-density mining containers (immersion cooling compatible).
Typical Load Profile Example
For a standard utilization scenario (85% Demand Factor), a 750 kVA unit might serve:
| Load Type | Allocated Capacity |
|---|---|
| Motor Loads (Pumps/Fans) | 337 kVA |
| Process Equipment | 187 kVA |
| Lighting & Computers | 112 kVA |
| Reserve / Future Growth | 112 kVA |
Frequently Asked Questions about 750 kVA Transformers
❓ What is the life expectancy of a 750 kVA oil-filled transformer?
❓ How often should the oil be tested?
❓ What is the difference between ONAN and KNAN cooling?
❓ Do I need secondary containment for the oil?
Compliance & Standards
This 750.0 kVA oil-filled transformer is designed and tested in accordance with the following major industry standards:
- IEEE C57.12.00: General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
- IEEE C57.12.34: Pad-Mounted, Compartmental-Type, Self-Cooled, Three-Phase Distribution Transformers
- IEEE C57.12.90: Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers
- NEMA TR 1: Transformers, Regulators, and Reactors
- DOE 10 CFR Part 431: Energy Efficiency Program for Certain Commercial and Industrial Equipment
- ASTM D3487: Standard Specification for Mineral Insulating Oil Used in Electrical Apparatus
Explore Related Capacities
| ← 500 kVA Three-Phase | 750 kVA (Current) | 1000 kVA Three-Phase → |
Key Planning Resources
Disclaimer: Data provided for preliminary engineering reference only. Short circuit calculations assume infinite bus. Protection sizing usually requires a licensed professional engineer (PE) to verify coordination.
