Comprehensive specifications for 150.0 kVA dead-front padmount transformer including dimensions, weight, concrete pad requirements, and electrical data
Quick Specifications
| Rated Power: | 150.0 kVA | Phase: | Three-Phase |
| Primary Voltage: | 12470GY/7200 | Secondary Voltage: | 208Y/120 |
| Enclosure: | Dead-Front | Cooling: | ONAN |
| Weight: | 2150 lbs (975 kg) | Concrete Pad: | 72″ × 72″ |
| Dimensions (H×W×D): | 40″ × 58″ × 48″ (1016 × 1473 × 1219 mm) | ||
A 150.0 kVA padmount transformer is a ground-mounted, oil-filled distribution transformer commonly used in large commercial, hospitals. This guide provides complete specifications for utility engineers, electrical contractors, and facility planners.

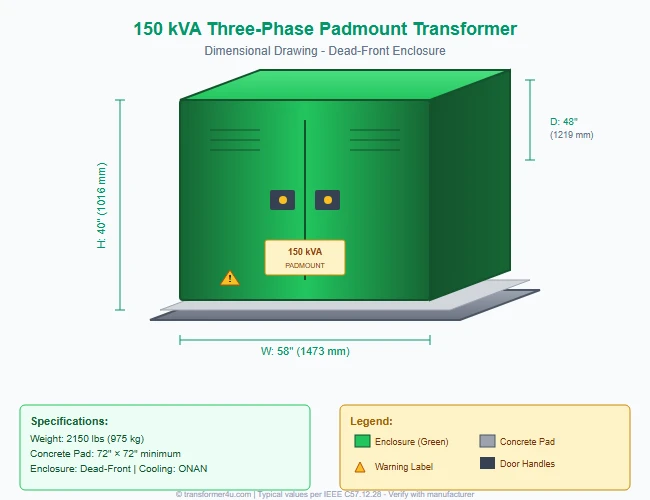

150.0 kVA Padmount Transformer Dimensions
| Dimension | Metric (mm) | Imperial (inches) |
|---|---|---|
| Height (H) | 1016 mm | 40″ |
| Width (W) | 1473 mm | 58″ |
| Depth (D) | 1219 mm | 48″ |
Concrete Pad Requirements
The 150.0 kVA padmount transformer requires a properly designed concrete pad for installation:
| Pad Specification | Requirement | Notes |
|---|---|---|
| Minimum Pad Size | 72″ × 72″ | Allow 6″ overhang on all sides |
| Pad Thickness | 4-6 inches | Reinforced concrete, 3000 PSI minimum |
| Grade/Slope | Level ± 1/4″/ft | Slight slope away from buildings |
| Conduit Entry | Per utility specs | Primary and secondary duct banks |
| Curing Time | 28 days minimum | Before transformer placement |
Weight and Oil Specifications
| Specification | Value | Notes |
|---|---|---|
| Total Weight (with oil) | 2150 lbs (975 kg) | Includes all oil and accessories |
| Oil Volume | 100 gallons (380 L) | Mineral insulating oil |
| Cooling Class | ONAN | Oil Natural, Air Natural |
| BIL Rating | 95 kV | Basic Insulation Level |
Electrical Specifications
| Parameter | Value | Notes |
|---|---|---|
| Rated kVA | 150.0 kVA | At rated voltage and ONAN cooling |
| Primary Voltage | 12470GY/7200 | With taps ±2.5%, ±5% |
| Secondary Voltage | 208Y/120 | Standard service voltage |
| No-Load Loss | 320 W | Core losses |
| Load Loss | 1350 W | At rated load |
| Total Losses | 1670 W | At 100% load |
| Impedance | 4.25% | Per IEEE C57.12.00 |
| Efficiency | 99.0% | DOE 2016 compliant |
Secondary Full Load Amps
Full load amperage at secondary voltage for 150.0 kVA three-phase padmount transformer:
| Secondary Voltage | Full Load Amps | Conductor Size |
|---|---|---|
| 120V | 721.7 A | 750+ MCM |
| 208V | 416.4 A | 750+ MCM |
| 240V | 360.9 A | 500 MCM |
| 277V | 312.7 A | 350 MCM |
| 480V | 180.4 A | 3/0 AWG |
Three-Phase:
Amps = (kVA × 1000) ÷ (Voltage × √3)Example at 240V:
360.9 A = (150.0 × 1000) ÷ (240 × 1.732)When to Choose a 150.0 kVA Padmount Transformer
A 150.0 kVA three-phase padmount transformer is commonly specified for medium commercial facilities, multi-family housing complexes, and retail centers.
Typical Load Distribution for 150.0 kVA Padmount Transformer
| Load Type | Estimated Demand |
|---|---|
| Commercial building HVAC | 60 kVA |
| Lighting and receptacles | 45 kVA |
| Office equipment | 30 kVA |
Note: Load estimates are typical values. Consult project load study for specific applications.
Related Padmount Transformer Sizes
Compare with adjacent kVA ratings:
| kVA Rating | Link |
|---|---|
| 112.5 kVA Three-Phase | 112.5 kVA Padmount Specs → |
| 150.0 kVA Three-Phase | Current Page |
| 225.0 kVA Three-Phase | 225.0 kVA Padmount Specs → |
Frequently Asked Questions
What size concrete pad do I need for a 150.0 kVA padmount transformer?
A 150.0 kVA padmount transformer requires a minimum pad size of 72″ × 72″ with 4-6 inches thickness of reinforced concrete.
How much does a 150.0 kVA padmount transformer weigh?
A 150.0 kVA padmount transformer weighs approximately 2150 lbs (975 kg) including oil.
What is the difference between dead-front and live-front padmount transformers?
Dead-front designs (like this 150.0 kVA unit) have all connections inside the locked cabinet with no exposed live parts. Live-front designs have bushings exposed on top, requiring additional safety barriers in public areas.
