Complete technical guide for the 250 kVA ONAN oil-filled distribution transformer. This page provides detailed electrical calculations, mechanical dimensions, protection sizing, and operational efficiency analysis for engineers and contractors.
⚡ Engineering Quick Reference
2083.3 A
41666 A
2500 lbs
100 gal
1. Electrical Characteristics & Performance
Detailed electrical performance data for system design and load analysis.
| Power Rating | 250 kVA | Phase | Single-Phase 1-Wire |
| Primary Voltage | 7200 V | Secondary Voltage | 120/240 V |
| Calculated Impedance | 5.0% | X/R Ratio | Typical 3.0 – 5.0 |
| No-Load Loss (Core) | 420 W | Load Loss (Copper) | 1800 W |
| Efficiency (50% Load) | 99.1% | BIL Rating | 95 kV |
| Sound Level | 47 dB | Analogy: Quiet office / Refrigerator hum |
2. Protection & Conductor Sizing Guide
Recommended protective device ratings based on NEC Article 450.3(A) and typical conductor sizing for 75°C Copper THHN/THWN.
| Parameter | Primary Side (7200V) | Secondary Side (120V) |
|---|---|---|
| Full Load Amps | 34.7 A | 2083.3 A |
| Rec. Overcurrent Protection | 110 A (Fuse @ ~300%) | 3000 A (Breaker @ ~125%) |
| Rec. Conductor Size | ##8 AWG (Cu) | Busbar or Multiple Runs (Cu) |

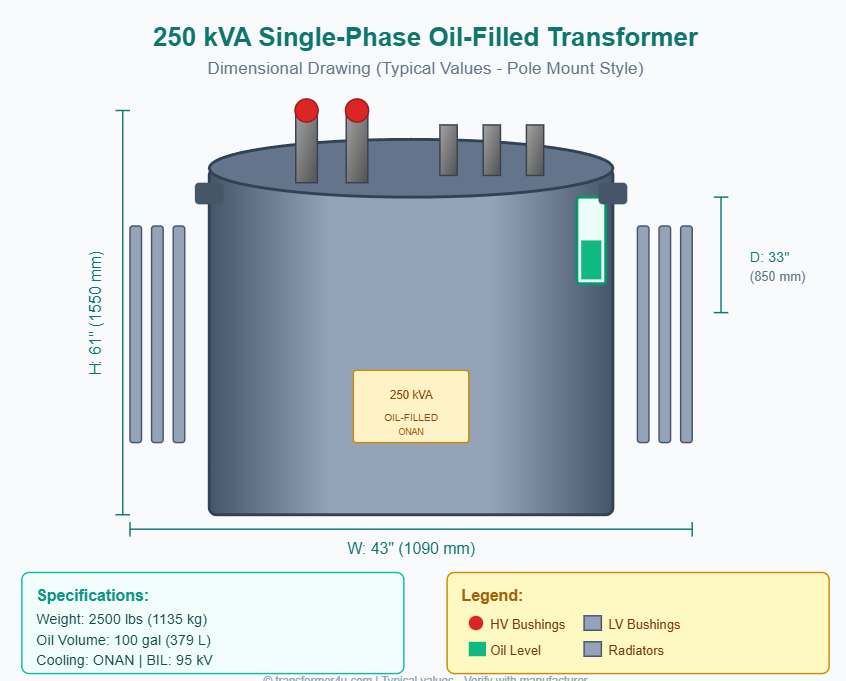

3. Dimensions, Installation & Maintenance
- Height: 61 inches (1550 mm)
- Width: 43 inches (1090 mm)
- Depth: 33 inches (850 mm)
Hardware Configuration
- Total Weight: 2500 lbs
- HV/LV Terminals: H1/H2 Bushings with 2-hole spade; X1/X2/X3 4-hole NEMA spades
- Standard Accessories: Pressure Relief Valve, Oil Level Gauge, Grounding Pads, Temperature Gauge (Thermometer), Drain Valve with Sampler
🔧 Heavy Installation Guide
This major 250 kVA oil-filled transformer requires professional rigging planning:
- Lifting: 2500 lbs dead weight – crane installation required using lifting lugs.
- Foundation: Engineered concrete pad with 1250 lb/sq.ft minimum loading capacity.
- Environmental: Permanent concrete secondary containment pit required for 100 gallons of oil.
- Commissioning: Insulation resistance (Megger), TTR (Turns Ratio), and Oil Dielectric tests mandatory before energizing.
Transformer Oil Maintenance Program
The reliability of this 250.0 kVA unit depends heavily on the condition of its 100 gallons of Mineral Oil. Oil acts as both coolant and electrical insulation.
| Maintenance Task | Frequency | Pass Criteria / Action |
|---|---|---|
| Visual Inspection | Monthly | Check for oil leaks at gaskets, bushings, and valves. Verify oil level gauge is at 25°C mark. |
| DGA Analysis | Annually | Dissolved Gas Analysis to detect internal arcing or overheating (Acetylene, Hydrogen levels). |
| Dielectric Test | Every 2 Years | Oil must withstand >30kV (ASTM D877) breakdown voltage. Filter if below limit. |
| Moisture Content | Every 2 Years | Max 35 ppm. Moisture drastically reduces insulation strength. |
4. Operational Cost & Application
Understanding the economics and application fit is crucial for transformer selection.
💰 Estimated Annual Operating Cost: $914.54 / Year
Based on 50% average loading at $0.12/kWh.
- 24/7 Core Losses cost: $441.5 / yr
- Load Losses cost (at 50%): $473.04 / yr
Application Guide: Where to use 250 kVA
A 250 kVA single-phase unit provides substantial power for:
- Commercial: Small strip malls, convenience stores, or gas stations.
- Light Industrial: Single-phase workshops, welding equipment, or small manufacturing.
- Pad-Mounting: Often installed on a concrete pad for underground distribution loops.
Typical Load Profile Example
For a standard utilization scenario (85% Demand Factor), a 250 kVA unit might serve:
| Load Type | Allocated Capacity |
|---|---|
| Lighting & General | 75 kVA |
| HVAC / Heating | 100 kVA |
| Water Heaters / Pumps | 50 kVA |
| Reserve Capacity | 25 kVA |
Frequently Asked Questions about 250 kVA Transformers
❓ What is the life expectancy of a 250 kVA oil-filled transformer?
❓ How often should the oil be tested?
❓ Can I install this 250 kVA unit indoors?
❓ How many houses can a 250 kVA transformer serve?
Compliance & Standards
This 250.0 kVA oil-filled transformer is designed and tested in accordance with the following major industry standards:
- IEEE C57.12.00: General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
- IEEE C57.12.20: Overhead-Type Distribution Transformers, 500 kVA and Smaller
- IEEE C57.12.90: Standard Test Code for Liquid-Immersed Distribution, Power, and Regulating Transformers
- NEMA TR 1: Transformers, Regulators, and Reactors
- DOE 10 CFR Part 431: Energy Efficiency Program for Certain Commercial and Industrial Equipment
- ASTM D3487: Standard Specification for Mineral Insulating Oil Used in Electrical Apparatus
Explore Related Capacities
| ← 167 kVA Single-Phase | 250 kVA (Current) | 333 kVA Single-Phase → |
Key Planning Resources
Disclaimer: Data provided for preliminary engineering reference only. Short circuit calculations assume infinite bus. Protection sizing usually requires a licensed professional engineer (PE) to verify coordination.
